深入探究属性

2021-08-01

2026-10-12

1
@interface RYModel : NSObject
2

3
@property (nonatomic, copy) NSString *name;
4
@property (nonatomic, assign) NSInteger age;
5
@property (nonatomic, assign) float height;
6
@property (nonatomic, strong) RYModel *father;
7
@property (nonatomic, assign) BOOL isBoy;
8

9
- (void)dosomething;
10

11
- (void)dosomethingWith:(NSString *)title;
12

13
+ (void)classDoSomething;
14

15
- (NSString *)sayMyName;
16

17
@end

一、成员变量和属性#

我们知道，属性会生成带下划线的成员变量和对应的set、get方法。我们将上面用到的RYModel，编译成C++看下。

1
static NSString * _I_RYModel_name(RYModel * self, SEL _cmd) { return (*(NSString **)((char *)self + OBJC_IVAR_$_RYModel$_name)); }
2
extern "C" __declspec(dllimport) void objc_setProperty (id, SEL, long, id, bool, bool);
3

4
static void _I_RYModel_setName_(RYModel * self, SEL _cmd, NSString *name) { objc_setProperty (self, _cmd, __OFFSETOFIVAR__(struct RYModel, _name), (id)name, 0, 1); }
5

6
static NSInteger _I_RYModel_age(RYModel * self, SEL _cmd) { return (*(NSInteger *)((char *)self + OBJC_IVAR_$_RYModel$_age)); }
7
static void _I_RYModel_setAge_(RYModel * self, SEL _cmd, NSInteger age) { (*(NSInteger *)((char *)self + OBJC_IVAR_$_RYModel$_age)) = age; }
8

9
static float _I_RYModel_height(RYModel * self, SEL _cmd) { return (*(float *)((char *)self + OBJC_IVAR_$_RYModel$_height)); }
10
static void _I_RYModel_setHeight_(RYModel * self, SEL _cmd, float height) { (*(float *)((char *)self + OBJC_IVAR_$_RYModel$_height)) = height; }
11

12
static RYModel * _I_RYModel_father(RYModel * self, SEL _cmd) { return (*(RYModel **)((char *)self + OBJC_IVAR_$_RYModel$_father)); }
13
static void _I_RYModel_setFather_(RYModel * self, SEL _cmd, RYModel *father) { (*(RYModel **)((char *)self + OBJC_IVAR_$_RYModel$_father)) = father; }
14

15
static BOOL _I_RYModel_isBoy(RYModel * self, SEL _cmd) { return (*(BOOL *)((char *)self + OBJC_IVAR_$_RYModel$_isBoy)); }
16
static void _I_RYModel_setIsBoy_(RYModel * self, SEL _cmd, BOOL isBoy) { (*(BOOL *)((char *)self + OBJC_IVAR_$_RYModel$_isBoy)) = isBoy; }

8.1 copy 修饰符#

name 属性用的是 copy 来修饰的。很容易发现它的set方法明显有不同。

他用的是 objc_setProperty ，而其他的都是直接通过内存平移对成员变量进行赋值操作。

二、objc_setProperty#

我们看下 objc_setProperty 的源码：

1
/// 对象 sel 偏移量 值 原子性 是否copy
2
void objc_setProperty(id self, SEL _cmd, ptrdiff_t offset, id newValue, BOOL atomic, signed char shouldCopy)
3
{
4
    // 是否是 Copy
5
    bool copy = (shouldCopy && shouldCopy != MUTABLE_COPY);
6
    // 是否是 可变的Copy
7
    bool mutableCopy = (shouldCopy == MUTABLE_COPY);
8
    reallySetProperty(self, _cmd, newValue, offset, atomic, copy, mutableCopy);
9
}

发现他实际调用了 reallySetProperty

2.1 reallySetProperty#

1
static inline void reallySetProperty(id self, SEL _cmd, id newValue, ptrdiff_t offset, bool atomic, bool copy, bool mutableCopy)
2
{
3
    if (offset == 0) {
4
        // 修改 ISA
5
        object_setClass(self, newValue);
6
        return;
7
    }
8

9
    id oldValue;
10
    // 定位（首地址+偏移量）
11
    id *slot = (id*) ((char*)self + offset);
12

13
    // Copy相关操作
14
    if (copy) {
15
        newValue = [newValue copyWithZone:nil];
16
    } else if (mutableCopy) {
17
        newValue = [newValue mutableCopyWithZone:nil];
18
    } else {
19
        if (*slot == newValue) return;// 相同的话不做操作
20
        // 引用计数+1
21
        newValue = objc_retain(newValue);
22
    }
23

24
    // 原子性相关
25
    if (!atomic) {
26
        oldValue = *slot;
27
        *slot = newValue;
28
    } else {
29
      // 加锁
30
        spinlock_t& slotlock = PropertyLocks[slot];
31
        slotlock.lock();
32
        oldValue = *slot;
33
        *slot = newValue;
34
        slotlock.unlock();
35
    }
36

37
    // release 旧值 引用计数 -1
38
    objc_release(oldValue);
39
}

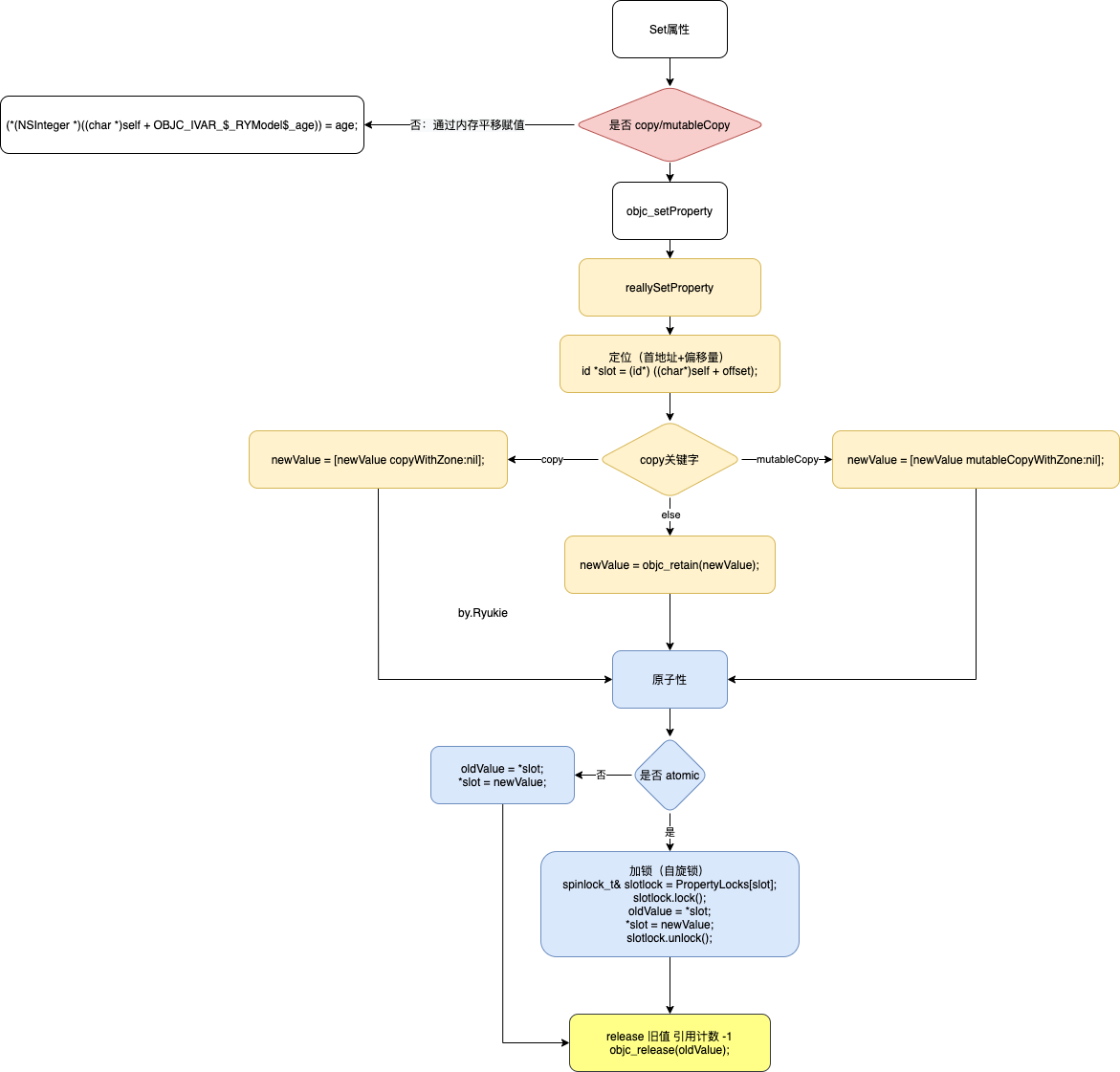

三、 Set 流程图#

Set方法

四、Type Encodings 类型编码#

我们会看到这样一些 objc_selector，其中有 v24@0:8@16 类似这样的一些看不懂的字符串。他们叫类型编码

具体可以对照官方文档这里就不展开聊了

以 setName 为例分析一次：

v	24	@	0	:	8	@	16
返回值类型-void	占用大小-24	参数-id	从偏移量0开始	SEL	从偏移量8开始	参数-id	从偏移量16开始

1
static struct /*_method_list_t*/ {
2
  unsigned int entsize;  // sizeof(struct _objc_method)
3
  unsigned int method_count;
4
  struct _objc_method method_list[21];
5
} _OBJC_$_INSTANCE_METHODS_RYModel __attribute__ ((used, section ("__DATA,__objc_const"))) = {
6
  sizeof(_objc_method),
7
  21,
8
  {{(struct objc_selector *)"ry_protocolDoSomething", "v16@0:8", (void *)_I_RYModel_ry_protocolDoSomething},
9
  {(struct objc_selector *)"name", "@16@0:8", (void *)_I_RYModel_name},
10
  {(struct objc_selector *)"setName:", "v24@0:8@16", (void *)_I_RYModel_setName_},
11
  {(struct objc_selector *)"age", "q16@0:8", (void *)_I_RYModel_age},
12
  {(struct objc_selector *)"setAge:", "v24@0:8q16", (void *)_I_RYModel_setAge_},
13
  {(struct objc_selector *)"height", "f16@0:8", (void *)_I_RYModel_height},
14
  {(struct objc_selector *)"setHeight:", "v20@0:8f16", (void *)_I_RYModel_setHeight_},
15
  {(struct objc_selector *)"father", "@16@0:8", (void *)_I_RYModel_father},
16
  {(struct objc_selector *)"setFather:", "v24@0:8@16", (void *)_I_RYModel_setFather_},
17
  {(struct objc_selector *)"isBoy", "c16@0:8", (void *)_I_RYModel_isBoy},
18
  {(struct objc_selector *)"setIsBoy:", "v20@0:8c16", (void *)_I_RYModel_setIsBoy_},
19
    ...
20
  {(struct objc_selector *)"isBoy", "c16@0:8", (void *)_I_RYModel_isBoy},
21
  {(struct objc_selector *)"setIsBoy:", "v20@0:8c16", (void *)_I_RYModel_setIsBoy_}}
22
};
